Curved C Track Festoon System with Accessories / Festoon Cable Trolley System

Product Categories
Shaoxing Nante Lifting Eqiupment Co.,Ltd.
Contact Now

Curved C Track Festoon System with Accessories / Festoon Cable Trolley System

Brand Name : NANTE

Model Number : C32

Place of Origin : China

MOQ : 1 meter

Price : usd2.5-5.5/meter

Supply Ability : 100000 meters/year

Delivery Time : 2 weeks

Packaging Details : according to customer's need

Material : Galvanized Steel

Standard Length : 4m or 6m

Cable Load : max.503kg

Contact Now

Specifications of Cable Trolley for Festoon System

1. Galvanized Steel Wire Cable Trolley Supplier
2. Delivering power&control to mobile equipment
3. Safe, efficient

Detailed Product Description

Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.

The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.

Application

C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.

Design features:

Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation

Technical Parameters

Type C32*30*1.5 C40*40*2.0 C63*63*4.0 C30*28*1.5
Material Galvanized steel / Except C63
Weight kg/m 1.19 2.00 5.98 1.03
Technical data
A 32 40 63 30
B 30 40 63 28
C 12 13 18 10
6 1.5 2.0 4.0 1.5
Spacing Max. Cable Load
1.5m 89kg 188kg 503kg 70kg
2.0m 51kg 103kg 425kg 36 kg
2.5m 39kg 73kg 302kg 22kg
3.0m 23kg 49kg 195kg -
4.0m - 28kg 85kg -

Curved C Track Festoon System with Accessories / Festoon Cable Trolley System


Product Tags:

c rail festoon system



festoon cable systems


China Curved C Track Festoon System with Accessories / Festoon Cable Trolley System wholesale

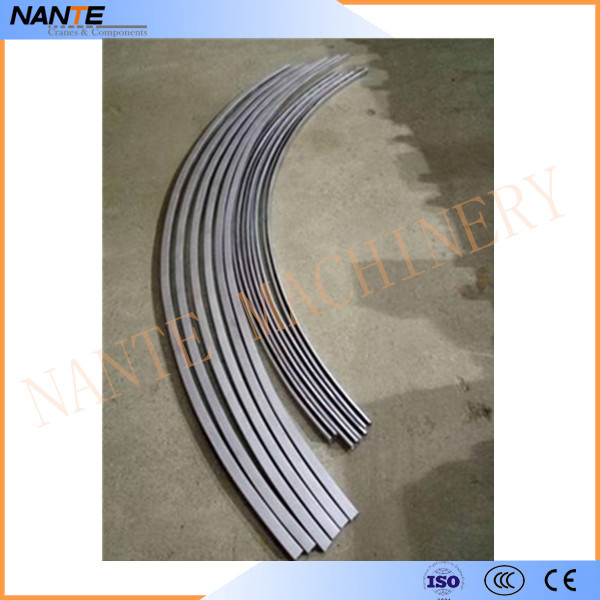

Curved C Track Festoon System with Accessories / Festoon Cable Trolley System Images
